Na'urar tantance fuska

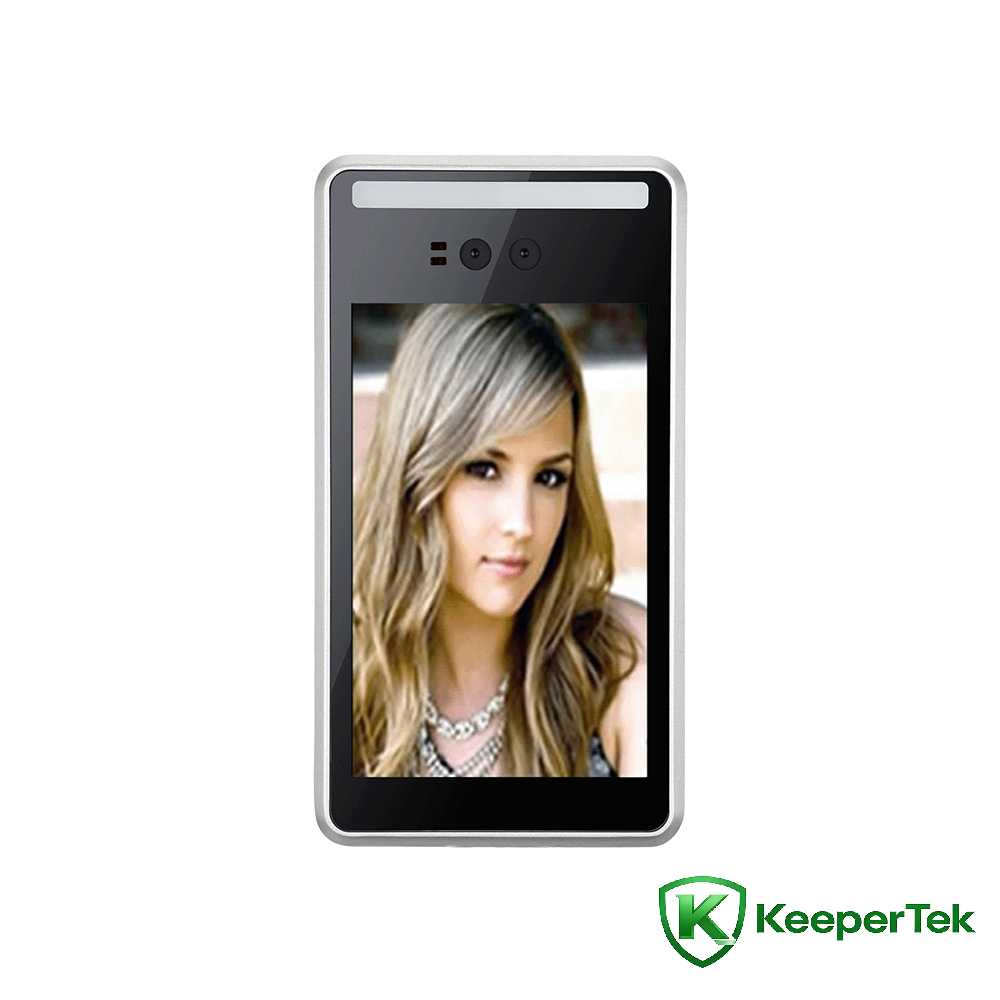

8inch fuska Gane duk-in-daya inji KT- FR012

Siffofin fasaha

Mai sarrafawa: Dual-core ARM Cortex-A7

Tsarin aiki: Tsarin tsarin aiki na Linux

Adana: 1GB RAM + 8GB eMMC

kusurwar kallo: Tsayayyen kusurwa: 30°； A kwance kusurwar kallo: 30°

Na'urar Hoto: 1/2.8" Ci gaba Scan CMOS

Lens: 6mm

Modulin swiping na kati (na zaɓi): 13.56MHz, yana goyan bayan Mifare S50, katunan S70, katunan ultralinght, katunan NTAG, DESFire D21, D41, D81, katunan CPU mara lamba

4G module (na zaɓi): yana goyan bayan LTE-FDD, LTE-TDD, DC-HSPA+, WCDMA, EDGE, GPRS da sauran ƙa'idodin cibiyar sadarwa, tare da matsakaicin matsakaicin ƙimar ƙasa na 160Mbps da matsakaicin ƙimar haɓakawa na 60Mbps

Tsarin Wifi (na zaɓi): 2.4GHz band mita, IEEE802 b/g/n yarjejeniya； 5GHz mitar band, IEEE802 a/n/ac yarjejeniya

Mai magana: daidaitaccen abun ciki, abun cikin sake kunna murya ana iya keɓance shi

Tsawon ganewa: 1.2 ~ 2.2 mita, daidaitacce kusurwa

Nisan ganewa: 0.5 ~ 1.5 mita, m dangane da ruwan tabarau

Lokacin ganewa: ƙasa da daƙiƙa 0.3

Ikon yin rikodi: 80,000 rikodin hoto

Ikon fuska: 30,000

Hasken allo: ≥400 cd/m2

Cibiyar sadarwa ta hanyar sadarwa: 1 RJ45 10M / 100M tashar tashar Ethernet mai daidaitawa, tashar tashar Gigabit mai daidaitawa

Wiegand interface: 1 Wiegand interface fitarwa, 1 Wiegand interface shigar

Ƙofar firikwensin dubawa: 1 tashar firikwensin firikwensin firikwensin

Ƙofar buɗe ido: hanyar buɗe ƙofar ƙofar hanya 1

Makullin kulle ƙofar: 1-hanyar kulle ƙofar ƙofar

Sadarwar Sadarwa: 1 tashar 485 sadarwar sadarwa

Kyamara: Kyamara binocular, haske mai gani kuma kusa da infrared, yana goyan bayan gano jikin mai rai

Tasirin pixels: 2.1 miliyan tasiri pixels, 1920*1080

Mafi ƙarancin haske: launi 0.01Lux @F1.2 (ICR); baki da fari 0.001Lux @F1.2 (ICR)

Rarraba siginar-zuwa amo: ≥50db (AGC KASHE)

Faɗin ƙarfi mai faɗi: 120db, ISP algorithm ɓangaren bayyana fuska

Rufaffen bidiyo: H.265 Babban Rufaffen bayanin martaba/H.264 BP/MP/HP encoding/MJPEG

Yanayin aiki: -30 ℃ - +60℃

Aiki zafi: 0 ~ 90% dangi zafi, babu condensation

Gishiri fesa matakin: Rp6 ko sama

Antistatic: lamba ± 6KV, iska ± 8KV

Wutar lantarki: DC12V/2A

Matakin hana tarzoma: IK06

Matsayin kariya: IP66

Ƙarfin kayan aiki: 20W (MAX)

Girman kayan aiki: 252 (tsawo) * 136 (nisa) * 26 (kauri) mm

Siffofin

Goyan bayan ganowar jikin mai rai na binocular

Algorithm na musamman na gano fuska mai rai, yana gane fuska daidai, lokacin gane fuska bai wuce 0.3s ba

Ma'anar lokacin gudu tsakanin gazawar MTBF ：50000H

Yana goyan bayan sa ido fuska da fallasa mutanen da ke motsi a cikin ƙaƙƙarfan yanayin hasken baya

Ƙididdiga masu ƙayyadaddun ƙayyadaddun ƙayyadaddun ƙayyadaddun ƙayyadaddun ƙayyadaddun ƙayyadaddun ƙayyadaddun ƙayyadaddun ƙayyadaddun ƙa'idodin, goyon bayan ka'idodin SDK da HTTP akan dandamali da yawa kamar Linux/Windows

Yin amfani da tsarin aiki na Linux, tsarin kwanciyar hankali ya fi kyau

Yana goyan bayan dakunan karatu na kwatanta fuska 30,000+ da bayanan tantancewa 80,000

Yana goyan bayan ajiyar fadada katin TF, ana iya adana hotuna ci gaba har tsawon shekara 1, ana iya adana bidiyo akai-akai har tsawon mako guda ko fiye.

Yanayin aiki: -30 ℃ - +60℃

waje IP66 mai hana ruwa da ƙura

Na'urar tana goyan bayan shiga gida don sarrafa, tambaya, da daidaita na'urar.

Abubuwan mu'amalar kayan masarufi (I/O, WG26, WG34, RJ45, firikwensin kofa, buɗe kofa, kulle kofa, RS485)

8-inch IPS cikakken nuni HD nuni, babu lalata ko jinkiri a cikin hotuna

Riba ta atomatik da ma'aunin fari ta atomatik suna ba da damar dawo da ainihin launi na hoton ta halitta

Ginanniyar firikwensin matakin haske na baƙar fata wanda aka keɓe don sa ido na bidiyo, ƙarin ingantaccen sanin ƙarancin haske

Rage hayaniyar 3D da fasahar shigar hazo suna sa hotunan sa ido a ƙarƙashin ƙaramin haske da ƙari

Goyan bayan toshe yanki na bidiyo

Goyan bayan ROI

Ma'auni fari ta atomatik, akwai ma'aunin farin hannun hannu

Goyon bayan rage amo na 2D da rage hayaniyar 3D

Yana goyan bayan haske na bidiyo, bambanci, launi, jikewa, da daidaita gamma

Goyon bayan saita matsakaicin lokacin fallasa ta atomatik

Yana goyan bayan fuskantar fallasa mai hankali da fuskantar saitunan haɓakawa na hankali
