Na'urar tantance fuska

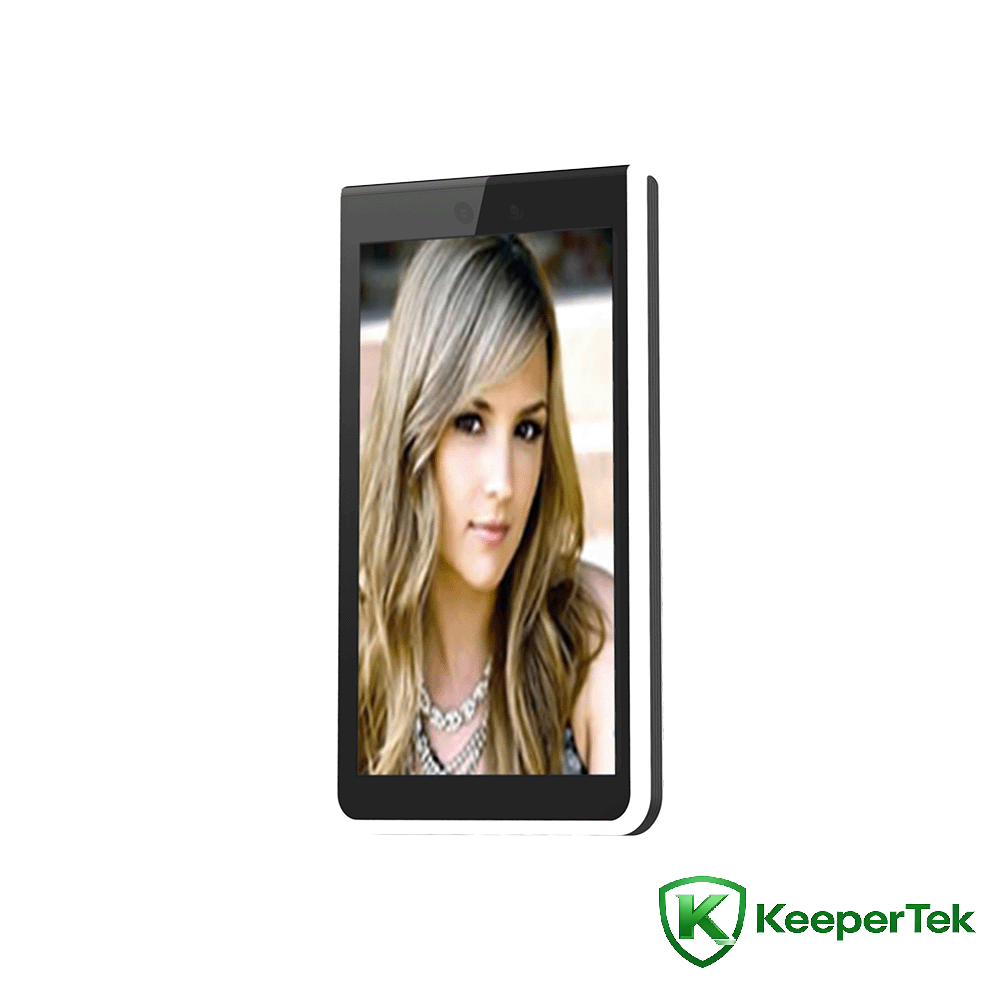

8inch fuska gane goga Kati mai bakin ciki duka-in-daya inji KT-FR011

Siffofin fasaha

Mai sarrafawa: Chip na gida YiZhi, dual-core processor + 1G memory + 16G EMMC

Tsarin aiki: Tsarin aiki na Linux

Adana: Goyan bayan ajiyar katin TF (na zaɓi)

Kyamara: Binocular, 2.1 miliyan tasiri pixels, 1920*1080

Na'urar Hoto: 1/2.8" Ci gaba Scan CMOS

Lens: 4.5mm tsayin hankali

WiFi module: 2.4GHz mita band, IEEE802 b/g/n yarjejeniya； 5GHz mitar band, IEEE802 a/n/ac yarjejeniya

Nau'in katin da za a iya gogewa: mifare daya (M1), S50, S70, NTAG2xx da sauran katunan bandeji na mita 13.56MHz, TK, EM da sauran jerin katunan mitar mitar 125KHz (IC/ID ana tallafawa)

Mai magana: Ana iya daidaita abun cikin sake kunna murya

Tsawon ganewa: 1.2 ~ 2.3 mita, daidaitacce kusurwa

Nisan ganewa: 0.5 ~ 2.5 mita

kusurwar fuska: digiri 30 hagu da dama, digiri 30 sama da ƙasa

Lokacin ganewa: ƙasa da daƙiƙa 0.3

Ƙarfin ajiya: 160,000 rikodin hoto

Ikon fuska: 24,000

Shigar da wutar lantarki: DC12V/2A

Cibiyar sadarwa ta hanyar sadarwa: 1 RJ45 10M / 100M tashar tashar Ethernet mai daidaitawa, tashar tashar Gigabit mai daidaitawa

Wiegand interface: 1 Wiegand interface fitarwa, 1 Wiegand interface shigar

Ƙararrawar ƙararrawa: shigar da ƙararrawar wuta mai hanya 1

Ƙofar firikwensin dubawa: shigarwar firikwensin kofa 1

Ƙofar buɗe ido: shigarwar buɗewar kofa 1

Ƙofar ƙwanƙwasa: 1 ƙararrawar ƙirar ƙirar ƙofar

Ƙofa kulle dubawa: 1 kofa kulle dubawa fitarwa

Sadarwar sadarwa: 1 RS485 sadarwar sadarwa

Kebul na USB: 1 kebul na USB

Kyamara: kyamarar binocular, ruwan tabarau duka, haske mai gani da infrared kusa, yana goyan bayan gano jikin mai rai

Tasirin pixels: 2.1 miliyan tasiri pixels, 1920*1080

Mafi ƙarancin haske: launi 0.01Lux @F1.2 (ICR); baki da fari 0.001Lux @F1.2 (ICR)

Rarraba siginar-zuwa amo: ≥50db (AGC KASHE)

Faɗin ƙarfi mai faɗi: 120db, ISP algorithm ɓangaren bayyana fuska

Rufaffen bidiyo: H.265 Babban Rufaffen bayanin martaba/H.264 BP/MP/HP encoding/MJPEG

Yanayin aiki: -20 ℃-55℃

Aiki zafi: 0 ~ 90% dangi zafi, babu condensation

Ƙarfin kayan aiki: 20W (MAX)

Gishiri fesa matakin: Rp6 ko sama

Antistatic: lamba ± 6KV, iska ± 8KV

Wutar lantarki: DC12V/2A

Matsayin kariya: IP42

Bayanan allo: 8-inch babban ma'anar IPS allon

Girman kayan aiki: 215.22*130*18mm

Siffofin

Goyan bayan ganowar jikin mai rai na binocular

Yana goyan bayan sa ido fuska da fallasa mutanen da ke motsi a cikin ƙaƙƙarfan yanayin hasken baya

Algorithm na gano fuska na musamman, yana gane fuska daidai, lokacin gane fuska bai wuce 0.3s ba

Ginin CPU na cikin gida

Yin amfani da tsarin aiki na LINUX, tsarin ya tsaya tsayin daka

H.265 encoding format video rafi an haɗa kai tsaye zuwa NVR da sauran na'urorin ajiya ta hanyar ONVIF yarjejeniya da GB28181 yarjejeniya.

Yana goyan bayan ajiyar gida a cikin katin TF, tare da ci gaba da adana hotuna na shekara 1 da bidiyo na wata 1 ko ya fi tsayi (dangane da ƙarfin katin TF na zaɓi)

Ma'anar lokacin gudu tsakanin gazawar MTBF · 50000h

Yana goyan bayan dakunan karatu na kwatanta fuska 24,000+ da bayanan tantancewa 160,000

Ƙididdigar ƙa'idodin ƙa'idodin ƙa'idodin ƙa'ida, tallafawa TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, ladabi na MQTT a ƙarƙashin Windows/Linux da sauran dandamali.

Yanayin aiki: -20 ℃-55℃

Goyi bayan ƙararrawar hana tambari

Yana goyan bayan docking murya da intercom girgije na bidiyo

Goyon bayan gudanarwa na gaba-karshen allon taɓawa da daidaitawa

Abubuwan mu'amalar kayan masarufi (I/O, WG26, WG34, RJ45, USB, firikwensin kofa, kararrawa, buɗe kofa, ƙararrawa, RS485)

8-inch IPS cikakken nuni HD nuni, babu lalata ko jinkiri a cikin hotuna

Riba ta atomatik da ma'aunin fari ta atomatik suna ba da damar dawo da ainihin launi na hoton ta halitta

Ginanniyar firikwensin matakin haske na baƙar fata wanda aka keɓe don sa ido na bidiyo, ƙarin ingantaccen sanin ƙarancin haske

Rage hayaniyar 3D da fasahar shigar hazo suna sa hotunan sa ido a ƙarƙashin ƙaramin haske da ƙari

Taimakon rafi na lambar kuma na tsara saitunan tazara

Goyan bayan toshe yanki na bidiyo

Goyan bayan ROI

Ma'auni fari ta atomatik, akwai ma'aunin farin hannun hannu

Goyi bayan mafi girman saitin lokacin fallasa

Goyan bayan saitunan saka idanu na wayar hannu

Goyon bayan rage amo na 2D da rage hayaniyar 3D

Yana goyan bayan lokacin yin rikodi da saitunan hanyar lodawa

Yana goyan bayan haske na bidiyo, bambanci, launi, jikewa, da daidaita gamma

Goyon bayan saita matsakaicin lokacin fallasa ta atomatik

Yana goyan bayan fuskantar fallasa mai hankali da fuskantar saitunan haɓakawa na hankali
