Na'urar tantance fuska

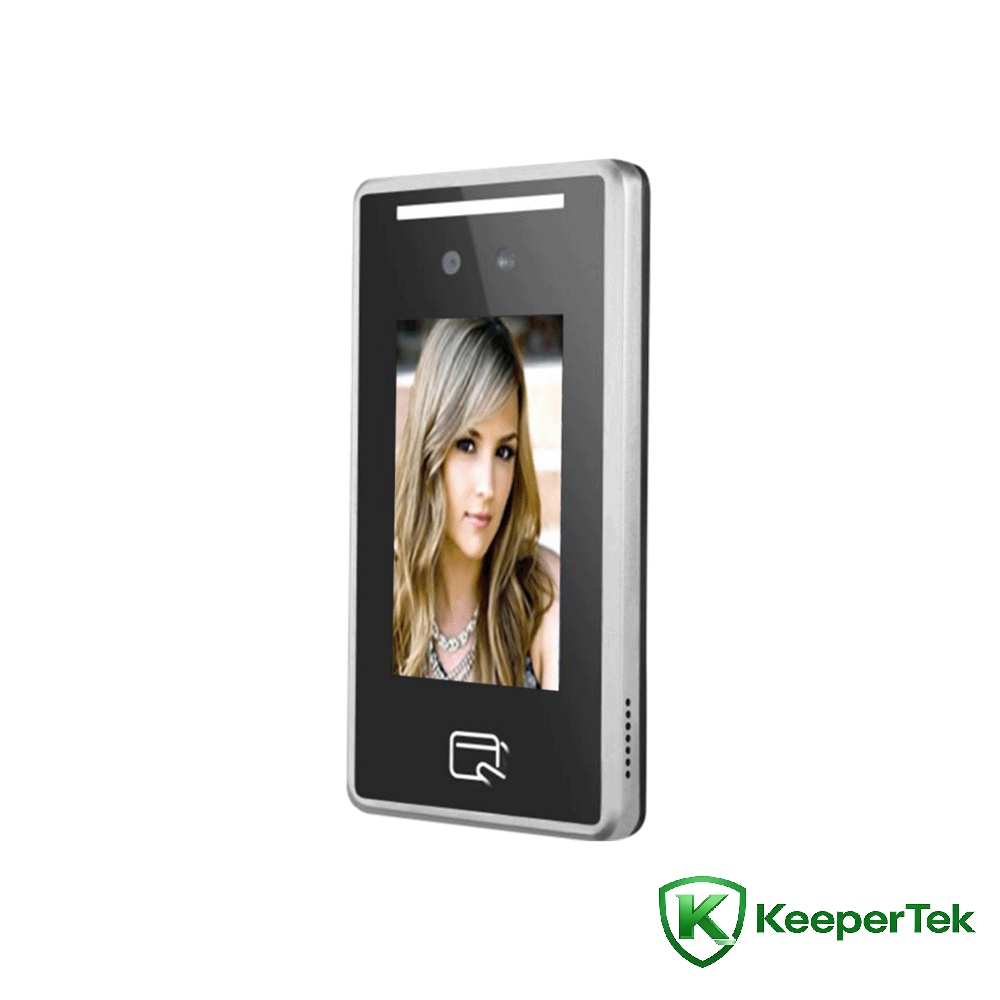

4.3inci mutane Fuska gane goga Katin hadedde inji KT- FR003

Siffofin fasaha

Mai sarrafawa: Dual-Core ARM Cortex-A7, @1.0GHz

Ajiya: RAM: 256MB ROM: 8GB

Tsarin aiki: Tsarin aiki na Linux

Lens: 4.32mm tsayi mai tsayi

Modul swiping na katin: 13.56MHz babban mitar katin swiping module, yana goyan bayan ISO/IEC 14443 TypeA, yana goyan bayan katunan IC

Ethernet: 100M Ethernet tashar jiragen ruwa, mai yarda da IEEE802.3/802.3u misali, yana goyan bayan IPV4 da IPV6 ladabi

Tsarin Wifi: Sadarwar WiFi mai mitar 2.4GHz guda ɗaya, tana goyan bayan ka'idar 802.11 b/g, matsakaicin matsakaicin 54Mbps

Tsarin Bluetooth: BT 4.2 Hanyar daidaitawa: DPSK, DQPSK, ƙimar watsa GFSK: 1Mbps ~ 3Mbps

Allon: 4.3-inch IPS LCD allon

Taɓa: Capacitive touch

Mai magana: daidaitacce ƙarar sauti, ƙarfin 1W

Nisan ganewa: 0.3 ~ 1.5 mita

kusurwar fuska: digiri 30 hagu da dama, digiri 30 sama da ƙasa

Lokacin ganewa: ƙasa da daƙiƙa 0.5

Girman fuska: 1000

Yawan rikodin: 70,000 records

Shigar da wutar lantarki: DC12V/2A

Cibiyar sadarwa: 1 100M Ethernet tashar jiragen ruwa

Wiegand dubawa: 1 Wiehand fitarwa

Ƙararrawar ƙararrawa: shigarwar ƙararrawa ta tashar 1

Ƙofar firikwensin dubawa: shigarwar firikwensin kofa 1

Ƙofar buɗe ido: shigarwar buɗe kofa 1

Sadarwar sadarwa: 1 RS485 sadarwar sadarwa

Kebul na USB: 1 USB2.0 Nau'in A

Kyamara: Kyamara binocular, haske mai gani da infrared kusa, yana goyan bayan gano jikin mai rai

Tasirin pixels: 2.1 miliyan tasiri pixels

Mafi ƙarancin haske: launi 0.01Lux @F1.2 (ICR); baki da fari 0.001Lux @F1.2 (ICR)

Rarraba siginar-zuwa amo: ≥50db (AGC KASHE)

Faɗin fa'ida mai ƙarfi: 100db, ISP algorithm ɓangaren bayyana fuska

Yanayin aiki: -10 ℃ zuwa +50℃

Zafin aiki: 10% ~ 90% zafi dangi, babu kumburi

Ƙarfin kayan aiki: 10W (MAX)

ESD: lamba ± 4KV, iska ± 6KV

Matsayin kariya: IP42

Wutar lantarki: DC12V/2A

Girman samfur: 173.5*90.0*24.0 (mm)

Siffofin

Goyan bayan ganowar jikin mai rai na binocular

·Yana goyan bayan sa ido fuska da fallasa mutanen da ke motsi a cikin ƙaƙƙarfan yanayin hasken baya

·Algorithm na gano fuska na musamman, yana gane fuska daidai, lokacin gane fuska bai wuce 0.5s ba

·Ginin CPU na cikin gida

·Yin amfani da tsarin aiki na LINUX, tsarin ya tsaya tsayin daka

·Ma'anar lokacin gudu tsakanin gazawar MTBF · 50000h

·Yanayin aiki: -10 ℃ - +50℃

·Goyan bayan tsarin kayan aiki na gaba-gaba, rajistar ma'aikata, tambayar bayanai da sauran ayyuka

·Abubuwan mu'amalar kayan masarufi (USB2.0, shigarwar firikwensin kofa, shigarwar buɗe kofa, shigarwar ƙararrawa, fitarwar Wiehand, da sauransu)

·4.3-inch capacitive touch allon, babu wani hoto ko bata lokaci
