Na'urar tantance fuska

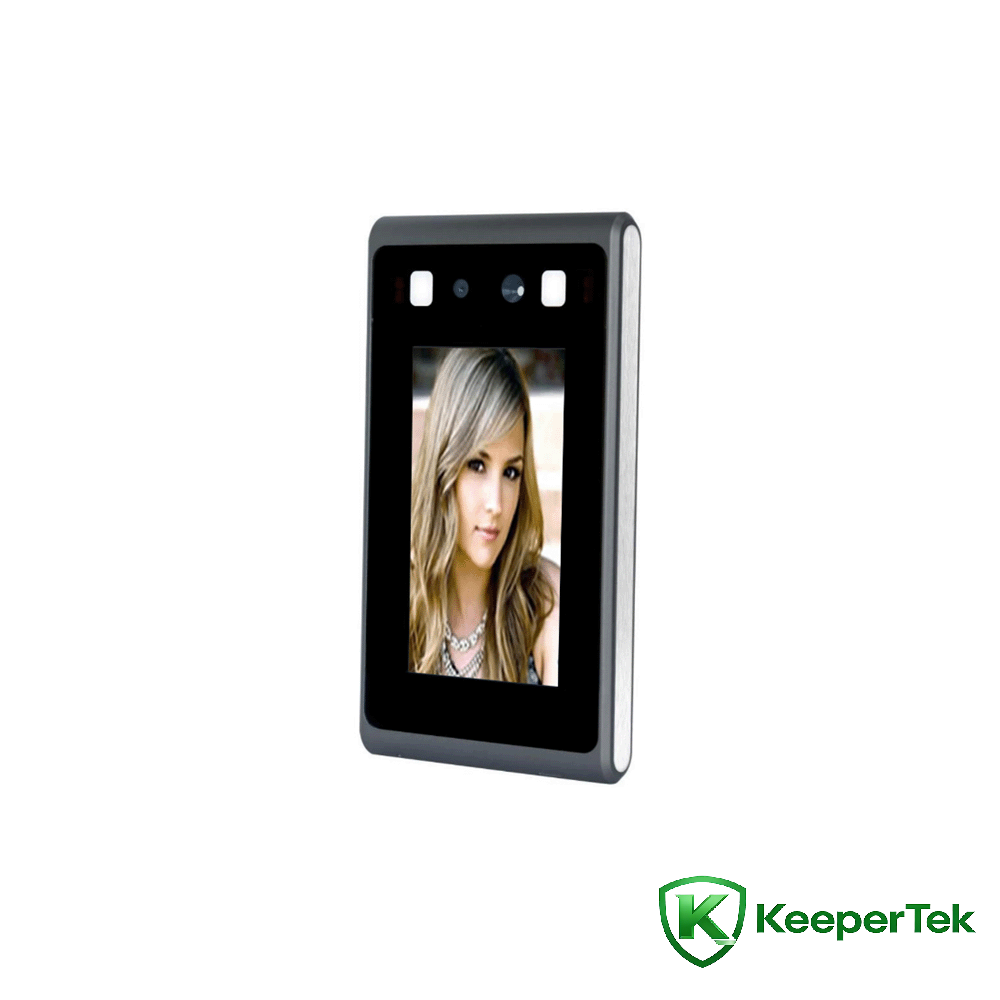

4.3inci mutane Fuska gane goga Katin hadedde inji KT- FR002

Siffofin fasaha

Mai sarrafawa: Dual-Core ARM Cortex-A7, @1.0GHz

Tsarin aiki: Tsarin aiki na Linux

Adana: Goyan bayan ajiyar katin TF (na zaɓi)

Kyamara: Binocular, 2.1 miliyan tasiri pixels, 1920*1080

Na'urar Hoto: 1/2.8" Ci gaba Scan CMOS

Lens: 4.5mm

Modulin swiping katin: na zaɓi, 13.56MHz, lambar serial katin ID, Mifare, NFC

Tsarin Wifi: daidaitaccen IEEE 802.11b/g/n, yana goyan bayan rukunin mitar 2.4GHz, kewayon saurin 1Mbps-150Mbps

Allon taɓawa: tallafi, allon taɓawa da yawa

Mai magana: daidaitaccen abun ciki, abun cikin sake kunna murya ana iya keɓance shi

Tsawon ganewa: 1.2 ~ 2.2 mita, daidaitacce kusurwa

Nisan ganewa: 0.3 ~ 1.5 mita

kusurwar fuska: digiri 30 hagu da dama, digiri 30 sama da ƙasa

Lokacin ganewa: ƙasa da daƙiƙa 0.5

Ƙarfin ajiya: 60,000 rikodin hotuna

Iyawar fuska: 20,000

Shigar da wutar lantarki: DC12V/2A

Cibiyar sadarwa ta hanyar sadarwa: 1 RJ45 10M/100M tashar tashar Ethernet mai daidaitawa

Wiegand interface: 1 Wiegand interface fitarwa, 1 Wiegand interface shigar

Ƙararrawar ƙararrawa: 1 shigar da ƙararrawa ta wuta, 1 fitarwa na ƙararrawa

Ƙofar firikwensin dubawa: shigarwar firikwensin kofa 1

Ƙofar buɗe ido: shigarwar buɗewar kofa 1

Ƙofar ƙwanƙwasa: 1 ƙararrawar ƙirar ƙirar ƙofar

Ƙofa kulle dubawa: 1 kofa kulle dubawa fitarwa

Sadarwar sadarwa: 1 RS485 sadarwar sadarwa

Kyamara: kyamarar binocular, ruwan tabarau duka, haske mai gani da infrared kusa, yana goyan bayan gano jikin mai rai

Tasirin pixels: 2.1 miliyan tasiri pixels, 1920*1080

Mafi ƙarancin haske: launi 0.01Lux @F1.2 (ICR); baki da fari 0.001Lux @F1.2 (ICR)

Rarraba siginar-zuwa amo: ≥50db (AGC KASHE)

Nunin allo: 480*272

Yanayin aiki: -20 ℃ - +55℃

Aiki zafi: 0 ~ 90% dangi zafi, babu condensation

Ƙarfin kayan aiki: 10W (MAX)

Gishiri fesa matakin: Rp6 ko sama

Antistatic: lamba ± 4KV, iska ± 8KV

Wutar lantarki: DC12V/2A

Matsayin kariya: IP42

Bayanan allo: 4.3-inch capacitive Multi-touch allon

Girman kayan aiki: 160 (tsawo) * 88 (nisa) * 17 (kauri) mm

Siffofin

Goyan bayan ganowar jikin mai rai na binocular

Yana goyan bayan sa ido fuska da fallasa mutanen da ke motsi a cikin ƙaƙƙarfan yanayin hasken baya

Algorithm na gano fuska na musamman, yana gane fuska daidai, lokacin gane fuska bai wuce 0.5s ba

Ginin CPU na cikin gida

Yin amfani da tsarin aiki na LINUX, tsarin ya tsaya tsayin daka

Ma'anar lokacin gudu tsakanin gazawar MTBF · 50000h

Yana goyan bayan dakunan karatu na kwatanta fuska sama da 20,000 da bayanan tantancewa 60,000

Yanayin aiki: -20 ℃-55℃

Na cikin gida IP42 mai hana ruwa da ƙura

Goyi bayan ƙararrawar hana tambari

Yana goyan bayan shigarwar makirufo da sautin fitarwa da lasifika

Abubuwan mu'amalar kayan masarufi (I/O, WG26, WG34, RJ45, firikwensin kofa, kararrawa kofa, buɗe kofa, ƙararrawa, RS485)

4.3-inch capacitive Multi-touch allo, babu wani batanci ko bata lokaci ba
