Na'urar tantance fuska

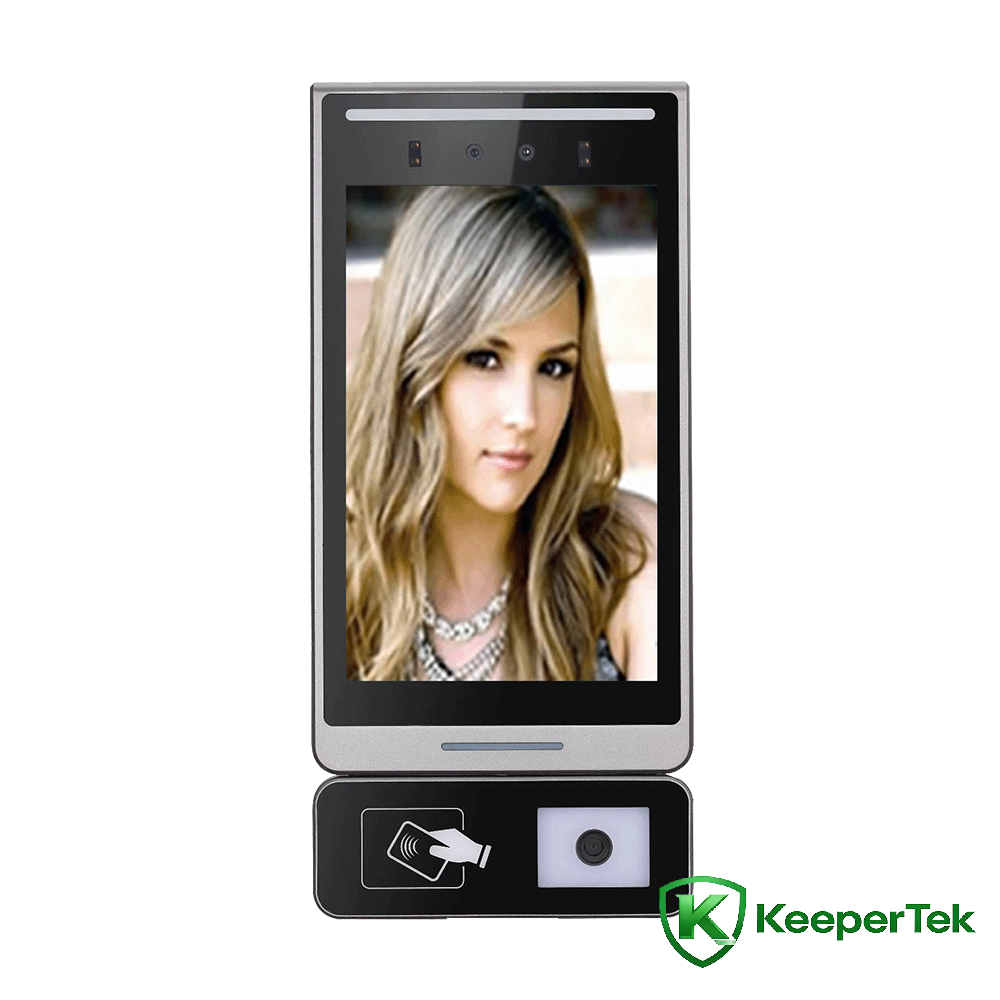

8Mutum inci Fuska gane mai girma biyu Na'ura mai jujjuya duk-in-daya KT- FR015

Siffofin fasaha

Mai sarrafawa: Dual-core ARM Cortex-A7 da RISC-V MCU

Tsarin aiki: Tsarin aiki na Linux

Adana: 1GB RAM + 8GB eMMC

Kyamara: Binocular, 2.1 miliyan tasiri pixels, 1920*1080

Na'urar Hoto: 1/2.8" Ci gaba Scan CMOS

Lens: 4.5mm tsayin hankali

Modulu na swiping na kati: mifare one (M1), S50, S70, NTAG2xx da sauran 13.56MHz katunan bandeji, TK, EM da sauran jerin katunan mitar mitar 125KHz (mai goyan bayan IC/ID)

QR code module: 640 (a kwance)

Mai magana: Ana iya daidaita abun cikin sake kunna murya

Tsayin ganewa: 1.2 ~ 2.3 mita, daidaitacce kusurwa

Nisan ganewa: 0.5 ~ 1.5 mita, m dangane da ruwan tabarau

kusurwar fuska: digiri 30 hagu da dama, digiri 30 sama da ƙasa

Lokacin ganewa: ƙasa da daƙiƙa 0.3

Ikon rikodin ganewa: 69000

Girman fuska: 24000

Shigar da wutar lantarki: DC12V/2A

Cibiyar sadarwa ta hanyar sadarwa: 1 RJ45 10M/100M tashar tashar Ethernet mai daidaitawa

Wiegand interface: 1 Wiegand interface fitarwa, 1 Wiegand interface shigar

Ƙimar canzawa: 1 fitarwa ƙimar ƙima

Sadarwar sadarwa: 1 RS485 sadarwar sadarwa

Kebul na USB: 1 kebul na USB

Kyamara: kyamarar binocular, ruwan tabarau na musamman, haske mai gani da infrared kusa, yana goyan bayan gano jikin mai rai

Tasirin pixels: 2.1 miliyan tasiri pixels, 1920*1080

Rarraba siginar-zuwa amo: ≥50db (AGC KASHE)

Faɗin ƙarfi mai faɗi: 120db, ISP algorithm ɓangaren bayyana fuska

Rufaffen bidiyo: H.265 Babban Rufaffen bayanin martaba/H.264 BP/MP/HP encoding/MJPEG

Yanayin aiki: -20 ℃-60℃

Aiki zafi: 0 ~ 90% dangi zafi, babu condensation

Ƙarfin kayan aiki: 20W (MAX)

Gishiri fesa matakin: Rp6 matakin

ESD: lamba ± 6KV, iska ± 8KV

Wutar lantarki: DC12V/2A

Matsayin kariya: IP66

Bayani dalla-dalla: 8-inch high-definition IPS allon, ƙuduri 1280*800

Girman kayan aiki: 295.76 (tsawo) * 140.2 (nisa) * 24 (kauri) mm

Siffofin

Goyan bayan ganowar jikin mai rai na binocular

Yana goyan bayan sa ido fuska da fallasa mutanen da ke motsi a cikin ƙaƙƙarfan yanayin hasken baya

Algorithm na gano fuska na musamman, yana gane fuska daidai, lokacin gane fuska bai wuce 0.3s ba

Ginin CPU na cikin gida

Yin amfani da tsarin aiki na LINUX, tsarin ya tsaya tsayin daka

Ma'anar lokacin gudu tsakanin gazawar MTBF · 50000h

Yana goyan bayan dakunan karatu na kwatanta fuska 24,000 da bayanan tantancewa 69,000

Ƙididdigar ƙa'idodin ƙa'idodin ƙa'idodin ƙa'ida, tallafawa TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, ladabi na MQTT a ƙarƙashin Windows/Linux da sauran dandamali.

Yanayin aiki: -20 ℃-60℃

Jiki mai bakin ciki, kyakkyawan ƙirar masana'antu

Abubuwan mu'amalar kayan masarufi (I/O, USB2.0, WG26, WG34, RJ45, RS485)

8-inch IPS cikakken nuni HD nuni, babu lalata ko jinkiri a cikin hotuna

Riba ta atomatik da ma'aunin fari ta atomatik suna ba da damar dawo da ainihin launi na hoton ta halitta

Rage hayaniyar 3D da fasahar shigar hazo suna sa hotunan sa ido a ƙarƙashin ƙaramin haske da ƙari

Goyan bayan toshe yanki na bidiyo

Goyan bayan ROI

Ma'auni fari ta atomatik, akwai ma'aunin farin hannun hannu

Goyon bayan rage amo na 2D da rage hayaniyar 3D

Yana goyan bayan haske na bidiyo, bambanci, launi, jikewa, da daidaita gamma
