Na'urar tantance fuska

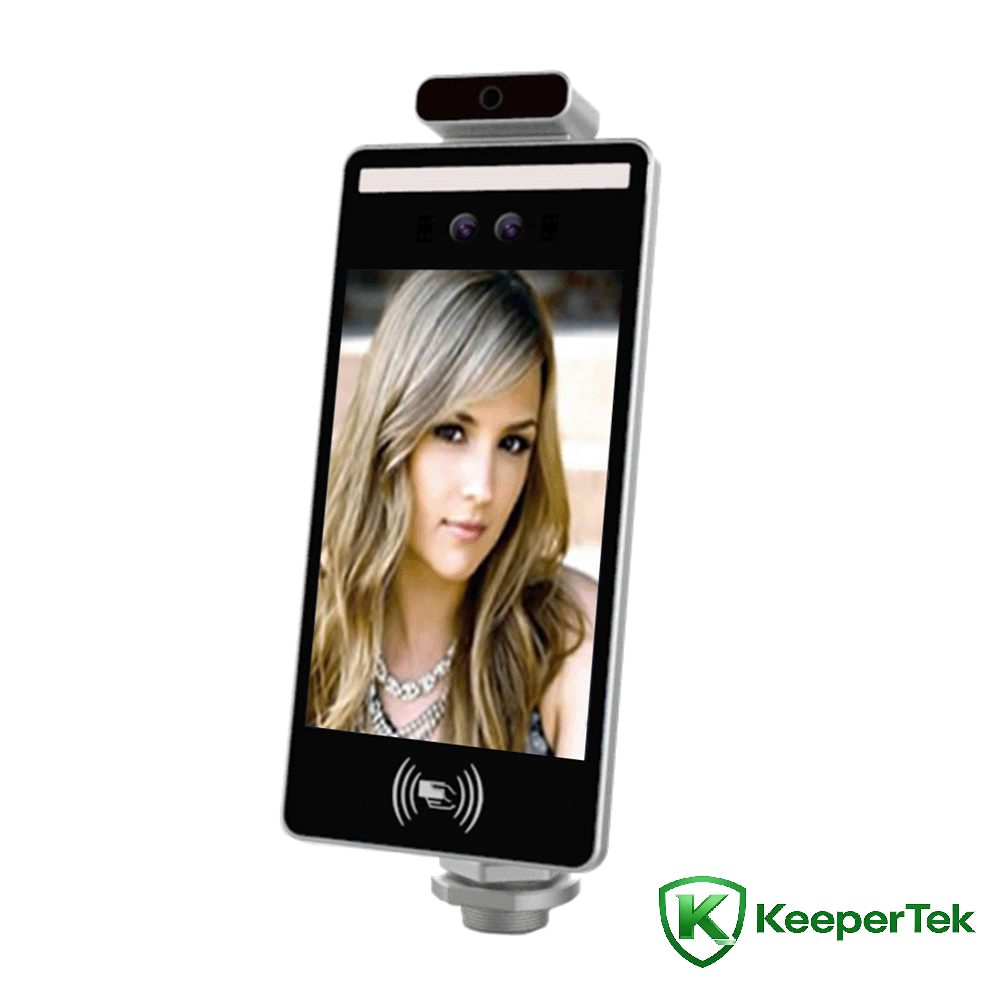

8inch fuska gane Doke kati Thermometry Duk-in-daya inji KT-FR009

Siffofin fasaha

Mai sarrafawa: Dual-core ARM Cortex-A7

Tsarin aiki: Tsarin tsarin aiki na Linux

Adana: 1GB RAM + 8GB eMMC

kusurwar kallo: Tsayayyen kusurwa: 30°； A kwance kusurwar kallo: 30°

Na'urar Hoto: 1/2.8" Ci gaba Scan CMOS

Lens: 6mm

Tsarin karatun lambar QR (na zaɓi): yana goyan bayan lambar QR, PDF417, ECC200, EAN13, Code128 da sauran lambobin QR da lambobin girma ɗaya.

Modulin swiping na kati: 13.56MHz, yana goyan bayan Mifare S50, katunan S70, katunan ultralinght, katunan NTAG, DESFire D21, D41, D81, katunan CPU mara lamba

Tsarin Wifi (na zaɓi): 2.4GHz band mita, IEEE802 b/g/n yarjejeniya； 5GHz mitar band, IEEE802 a/n/ac yarjejeniya

Mai magana: daidaitaccen abun ciki, abun cikin sake kunna murya ana iya keɓance shi

Yanayin aunawa: 16 ℃-40 ℃, babu iska a cikin gida (duba bayanin kula don cikakkun bayanai)

Ruwan tabarau na auna zafin jiki: ruwan tabarau na asali da aka shigo da su daga Turai

Nau'in Sensor: firikwensin darajar likita da aka shigo da shi daga Turai

Daidaiton aunawa: ± 0.3℃

Ƙimar zafin jiki: 0.1℃

Nisan auna zafin jiki: ≤30cm

Lokacin amsawa: 300ms

Tsawon ganewa: 1.2 ~ 2.2 mita, daidaitacce kusurwa

Nisan ganewa: 0.3 ~ 1.5 mita, m dangane da ruwan tabarau

Lokacin ganewa: ƙasa da daƙiƙa 0.3

Ikon yin rikodi: 80,000 rikodin hoto

Ikon fuska: 30,000

Hasken allo: ≥400 cd/m2

Sauyawa fitarwa: 1 fitarwa fitarwa, sauran GPIO mashigai za a iya musamman

Kebul na USB: 1 USB interface a matsayin na'ura

Cibiyar sadarwa ta hanyar sadarwa: 1 RJ45 10M / 100M tashar tashar Ethernet mai daidaitawa, tashar tashar Gigabit mai daidaitawa

Wiegand interface: 1 Wiegand interface fitarwa, 1 Wiegand interface shigar

Sadarwar sadarwa: 1 RS485 dubawa

Kyamara: Kyamara binocular, haske mai gani kuma kusa da infrared, yana goyan bayan gano jikin mai rai

Tasirin pixels: 2.1 miliyan tasiri pixels, 1920*1080

Mafi ƙarancin haske: launi 0.01Lux @F1.2 (ICR); baki da fari 0.001Lux @F1.2 (ICR)

Rarraba siginar-zuwa amo: ≥50db (AGC KASHE)

Faɗin ƙarfi mai faɗi: 120db, ISP algorithm ɓangaren bayyana fuska

Rufaffen bidiyo: H.265 Babban Rufaffen bayanin martaba/H.264 BP/MP/HP encoding/MJPEG

Zazzabi na aiki: -30 ℃ - + 60 ℃ (zazzabi yanayin yanayin zafi: +16 ℃ - + 40 ℃)

Aiki zafi: 0 ~ 90% dangi zafi, babu condensation

Gishiri fesa matakin: Rp6 ko sama

Antistatic: lamba ± 6KV, iska ± 8KV

Wutar lantarki: DC12V/2A

Matsayin kariya: IP42

Ƙarfin kayan aiki: 20W (MAX)

Girman kayan aiki: 252 (tsawo) * 136 (nisa) * 26 (kauri) mm

Siffofin

Goyan bayan ganowar jikin mai rai na binocular

Yana goyan bayan sa ido fuska da fallasa mutanen da ke motsi a cikin ƙaƙƙarfan yanayin hasken baya

Algorithm na gano fuska na musamman, yana gane fuska daidai, lokacin gane fuska bai wuce 0.3s ba

Yin amfani da tsarin aiki na LINUX, tsarin ya tsaya tsayin daka

H.265 encoding format video rafi an haɗa kai tsaye zuwa NVR da sauran na'urorin ajiya ta hanyar ONVIF yarjejeniya da GB28181 yarjejeniya.

Yana goyan bayan ajiyar gida a cikin katin TF, tare da ci gaba da adana hotuna na shekara 1 da bidiyo na wata 1 ko ya fi tsayi (dangane da ƙarfin katin TF na zaɓi)

Ma'anar lokacin gudu tsakanin gazawar MTBF · 50000h

Yana goyan bayan dakunan karatu na kwatanta fuska 30,000+ da bayanan tantancewa 80,000

Yana goyan bayan auna zafin jiki a kusa da ƙararrawar zafin jiki

Taimaka wa ka'idojin mu'amala da yanayin zafin jiki

Ƙididdigar ƙa'idodin ƙa'idodin ƙa'idodin ƙa'ida, tallafawa TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, ladabi na MQTT a ƙarƙashin Windows/Linux da sauran dandamali.

Zazzabi na aiki: -30 ℃ - 60 ℃ (zazzabi yanayin yanayin zafi: +16 ℃ - + 40 ℃)

IP42 mai hana ruwa da ƙura

Abubuwan mu'amalar kayan masarufi (I/O, WG26, WG34, RJ45, USB, RS485)

8-inch IPS cikakken nuni HD nuni, babu lalata ko jinkiri a cikin hotuna

Riba ta atomatik da ma'aunin fari ta atomatik suna ba da damar dawo da ainihin launi na hoton ta halitta

Ginanniyar firikwensin matakin haske na baƙar fata wanda aka keɓe don sa ido na bidiyo, ƙarin ingantaccen sanin ƙarancin haske

Rage hayaniyar 3D da fasahar shigar hazo suna sa hotunan sa ido a ƙarƙashin ƙaramin haske da ƙari

Goyan bayan toshe yanki na bidiyo

Goyan bayan ROI

Ma'auni fari ta atomatik, akwai ma'aunin farin hannun hannu

Goyon bayan rage amo na 2D da rage hayaniyar 3D

Yana goyan bayan haske na bidiyo, bambanci, launi, jikewa, da daidaita gamma

Goyon bayan saita matsakaicin lokacin fallasa ta atomatik

Yana goyan bayan fuskantar fallasa mai hankali da fuskantar saitunan haɓakawa na hankali
