Na'urar tantance fuska

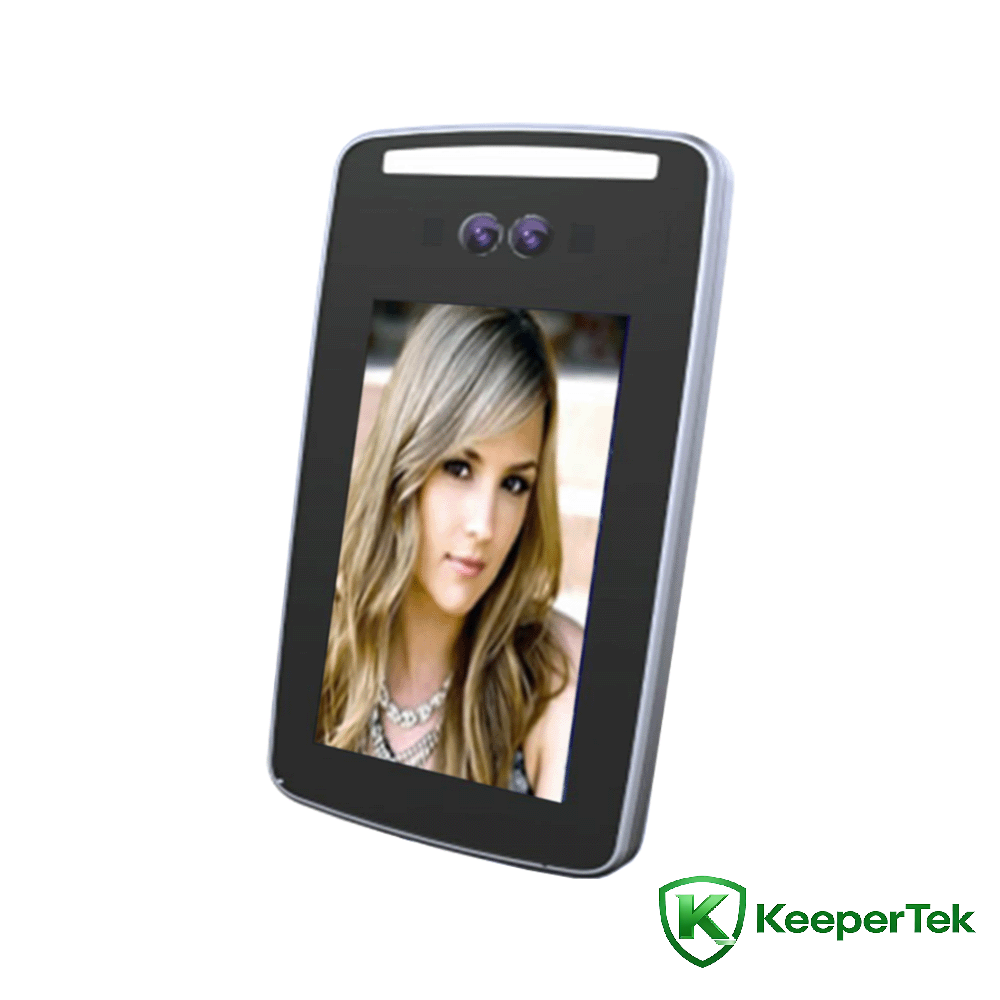

7inci mutane Gane fuska duk-in-daya inji KT- FR005

Siffofin fasaha

Mai sarrafawa: dual-core processor + 1G memory + 16G EMMC

Tsarin aiki: Tsarin aiki na Linux

Adana: Goyan bayan ajiyar katin TF

Kyamara: Binocular, 2.1 miliyan tasiri pixels, 1920*1080

Na'urar Hoto: 1/2.8" Ci gaba Scan CMOS

Lens: 6mm

Mai magana: daidaitaccen abun ciki, abun cikin sake kunna murya ana iya keɓance shi

Tsawon ganewa: 1.2 ~ 2.2 mita, daidaitacce kusurwa

Nisan ganewa: 0.5 ~ 1.5 mita, m dangane da ruwan tabarau

kusurwar fuska: digiri 30 hagu da dama, digiri 30 sama da ƙasa

Lokacin ganewa: ƙasa da daƙiƙa 0.5

Iyawar fuska: 20,000

Ƙarfin ajiya: 60,000 rikodin hotuna

Sauyawa fitarwa: 1 fitarwa fitarwa, sauran GPIO mashigai za a iya musamman

Cibiyar sadarwa ta hanyar sadarwa: 1 RJ45 10M / 100M tashar tashar Ethernet mai daidaitawa, tashar tashar Gigabit mai daidaitawa

Wiegand interface: 1 Wiegand interface shigarwa, 1 Wiegand interface fitarwa

Kebul na USB: 1 USB interface a matsayin na'ura

Sadarwar sadarwa: 1 RS485 dubawa

Kyamara: Kyamara binocular, haske mai gani kuma kusa da infrared, yana goyan bayan gano jikin mai rai

Tasirin pixels: 2.1 miliyan tasiri pixels, 1920*1080

Mafi ƙarancin haske: launi 0.01Lux @F1.2 (ICR); baki da fari 0.001Lux @F1.2 (ICR)

Rarraba siginar-zuwa amo: ≥50db (AGC KASHE)

Faɗin fa'ida mai ƙarfi: 100db, ISP algorithm ɓangaren bayyana fuska

Rufaffen bidiyo: H.265 Babban Rufaffen bayanin martaba/H.264 BP/MP/HP encoding/MJPEG

Tsarin shafin yanar gizon: goyan baya

Haɓaka nesa na na'ura: goyan baya

Hanyar turawa: tana goyan bayan hanyar sadarwar jama'a da amfani da LAN

Yanayin aiki: -30 ℃ - +60℃

Aiki zafi: 0 ~ 90% dangi zafi, babu condensation

Gishiri fesa matakin: Rp6 ko sama

Antistatic: lamba ± 6KV, iska ± 8KV

Wutar lantarki: DC12V/2A

Matakin hana tarzoma: IK06

Matsayin kariya: IP66

Ikon na'ura: 14.4W (MAX)

Girman kayan aiki: 128 (nisa) * 28 (kauri) * 240 (tsawo) mm

Siffofin

Goyan bayan ganowar jikin mai rai na binocular

Yana goyan bayan sa ido fuska da fallasa mutanen da ke motsi a cikin ƙaƙƙarfan yanayin hasken baya

Algorithm na gano fuska na musamman, yana gane fuska daidai, lokacin gane fuska bai wuce 0.5s ba

 Ginin CPU na cikin gida

Yin amfani da tsarin aiki na LINUX, tsarin ya tsaya tsayin daka

Ma'anar lokacin gudu tsakanin gazawar MTBF · 50000h

Yana goyan bayan dakunan karatu na kwatanta fuska 20,000 da bayanan tantancewa 60,000

Ka'idodin ƙa'idodin ƙa'idodin ƙa'ida, masu tallafawa TCP/IP, UDP, HTTP, DNS, DHCP, ka'idodin MQTT ƙarƙashin Windows/Linux da sauran dandamali · Zazzabi na aiki: -30 ℃-60℃

IP66 mai hana ruwa da ƙura

 Ginin firikwensin hoto, yana daidaita ƙarfin haske ta atomatik

Abubuwan mu'amalar kayan masarufi (I/O, WG26, WG34, RJ45, RS485)

7-inch IPS cikakken nuni HD nuni, babu lalata ko jinkiri a cikin hotuna
